ENERGY HARVESTER PRODUCTS
KINEZTM is a high power, large current type, high efficiency kinetic energy harvesting
device. As a world top product, it has characteristics of low output impedance
with only 50 micron*1 thickness. In addition, if combined together with an energy harvest power
IC (PMIC*2), the efficiency will be even higher and will provide a totally environmental
power generator solution. In terms of applications, it can be coupled with
a large capacitor or Lithium battery since it has lower output impedance,
and other various energy harvesting product concepts can be applied. The
device can be especially effective under less frequent and large phase
vibrations due to its highly flexible material. For high voltage output,
K7520BS3 or K7520BP2 can be used, and the more compact K2512U1, K2512BP1
or K2512BS1 can be used for high current purposes. Please choose the device
accordingly for the kinetic source and the purpose.
*1 K2512 Series. *2 PMIC: Power Management Integrated Circuit.

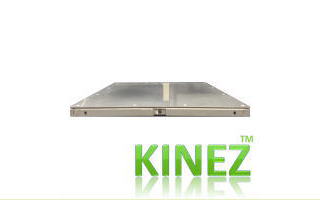

KINEZ FIELD : Power from the floor
KINEZ FIELD
17.72x17.72x1.260(in) 450x450x32t(mm)
Pmax : 0.1Ws
HIGH POWER,
FLAT IN SHAPE,
EASY INSTALLATION
KINEZ CELL : K7520 SERIES : High power energy harvester
KINEZ K7520BS3
BIMORPH : SERIES
2.95x7.9x0.017(in) 75x20x0.43t(mm)
Pmax : 2mW
2X VOLTAGE SYSTEM
KINEZ K7520BP2
BIMORPH : Parallel
2.95x7.9x0.012(in) 75x20x0.33t(mm)
Pmax : 2mW
2X CURRENT SYSTEM
KINEZ CELL : K2512 SERIES : Smart energy harvester
KINEZ K2512U1
UNIMORPH
0.98x0.47x0.05(in) 25x12x0.13(mm)
Pmax : 0.1mW
ULTRA-SOFT
KINEZ K2512BS1
BIMORPH : Series
0.98x0.47x0.09(in) 25x12x0.23(mm)
Pmax : 0.2mW
2X VOLTAGE SYSTEM
KINEZ K2512BP1
BIMORPH : Parallel
0.98x0.47x0.09(in) 25x12x0.23(mm)
Pmax : 0.2mW
2X CURRENT SYSTEM
KINEZ DRIVE : Energy Harvester Power conditioner
KINEZ DRIVE u2
MB39C811 PMIC module
0.75x0.61x0.157(in) 19x15.5x4(mm)
VIN : 2.6V - 23V
VOUT : 1.5V - 5.0V
Dual bridge rectifier
